OpenBacktesting Studio

View Markdown

Studio is the optional browser interface for OpenBacktesting. Edit local Python files, change strategy inputs, run backtests, and inspect charts, trades, logs, and parameter experiments in one workspace. The Python framework works independently: installing openbacktesting alone does not install Studio or its web assets.

Click any screenshot to open it at full size.

1. Install and launch

These instructions target the Studio source checkout. They do not assume that openbacktesting-studio has been published on PyPI. Use Python 3.12–3.14; the current Studio has been exercised on macOS. Linux and Windows have not been verified, and workspace file protection currently uses POSIX directory descriptors.

From a source checkout

Start at the root of an OpenBacktesting checkout containing the studio/ directory. Building the web assets requires Node.js 22.12+ and npm. Ensure python --version reports a supported version, then create an isolated Python environment, build the assets, and install both local packages together:

python -m venv .venv-studio
source .venv-studio/bin/activate
python -m pip install --upgrade pip
npm --prefix studio/web ci --ignore-scripts
npm --prefix studio/web run build
python -m pip install . ./studio
openbacktesting-studio examples/strategies

The build compiles the vendored chart library and packages the interface and editor worker. The Python installation rejects missing or stale frontend assets. Run the frontend build again after changing interface code. For editable Python development, replace the install command with python -m pip install -e . -e ./studio.

From built packages

If you have the matching core and Studio wheels, install them into the same Python environment. This route needs no Node.js or npm:

python -m pip install /path/to/openbacktesting-0.2.1-py3-none-any.whl /path/to/openbacktesting_studio-0.1.0-py3-none-any.whl
openbacktesting-studio /path/to/strategies

Built Studio wheels and source distributions include the compiled interface; the running application loads its assets locally, without a CDN. Your strategy's additional Python dependencies must be installed in its interpreter.

Studio opens the default browser. To choose the browser yourself, use --no-open, then open the complete URL printed by the terminal, including the one-time #token=… fragment. The default address uses 127.0.0.1:8765. Keep the terminal running; press Ctrl+C there to stop the server.

openbacktesting-studio /path/to/strategies --no-open

An occupied port produces an error. Stop your own previous Studio process or choose another fixed port with --port 8766. --port 0 chooses a temporary port. To use another interpreter, pass --python /absolute/path/to/python; install compatible core and Studio packages there first.

2. Choose your workspace

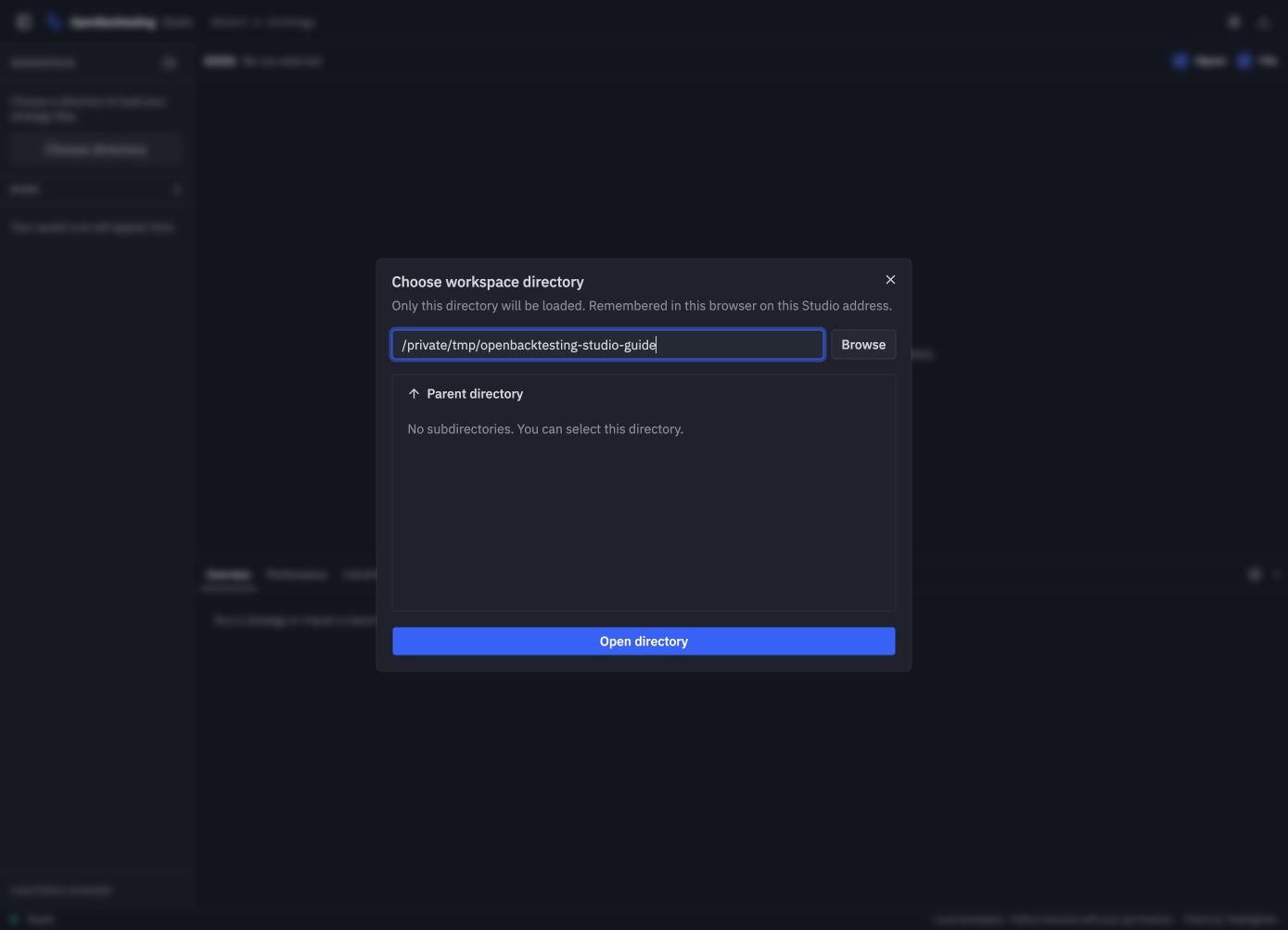

On first use, select a directory in Choose workspace directory. Browse folders or enter an absolute path and click Open directory. The CLI directory is a starting location for the picker, not permission to automatically load every file in the current directory.

The screenshots use an isolated directory containing copies of the repository's example strategies. Your directory path and run IDs will differ.

Studio remembers the chosen path in browser localStorage (studio.workspace). Reloading or restarting at the same address restores it. A different port, hostname, browser profile, or cleared browser storage has separate preferences. If the directory no longer exists, choose another one.

Use the folder button beside Workspace to switch directories after saving edits and finishing or cancelling active work. Search the file list by name or path. Each directory keeps its own run history.

3. Run your first strategy

For the source-checkout walkthrough, choose examples/strategies, then search for and open ema_inputs.py. This example declares a single @backtest strategy with configurable EMA periods and order quantity. A script that only calls Backtest(...).run() is not automatically a Studio strategy; see decorator and runtime.

1. Click Run. The first run opens Strategy settings for review.
2. In Inputs, keep Fast period 12, Slow period 26, Trade quantity 1, and Allow shorting off. Keep the fast period below the slow period.
3. In Properties, review cash, commissions, sizing, and execution behavior.

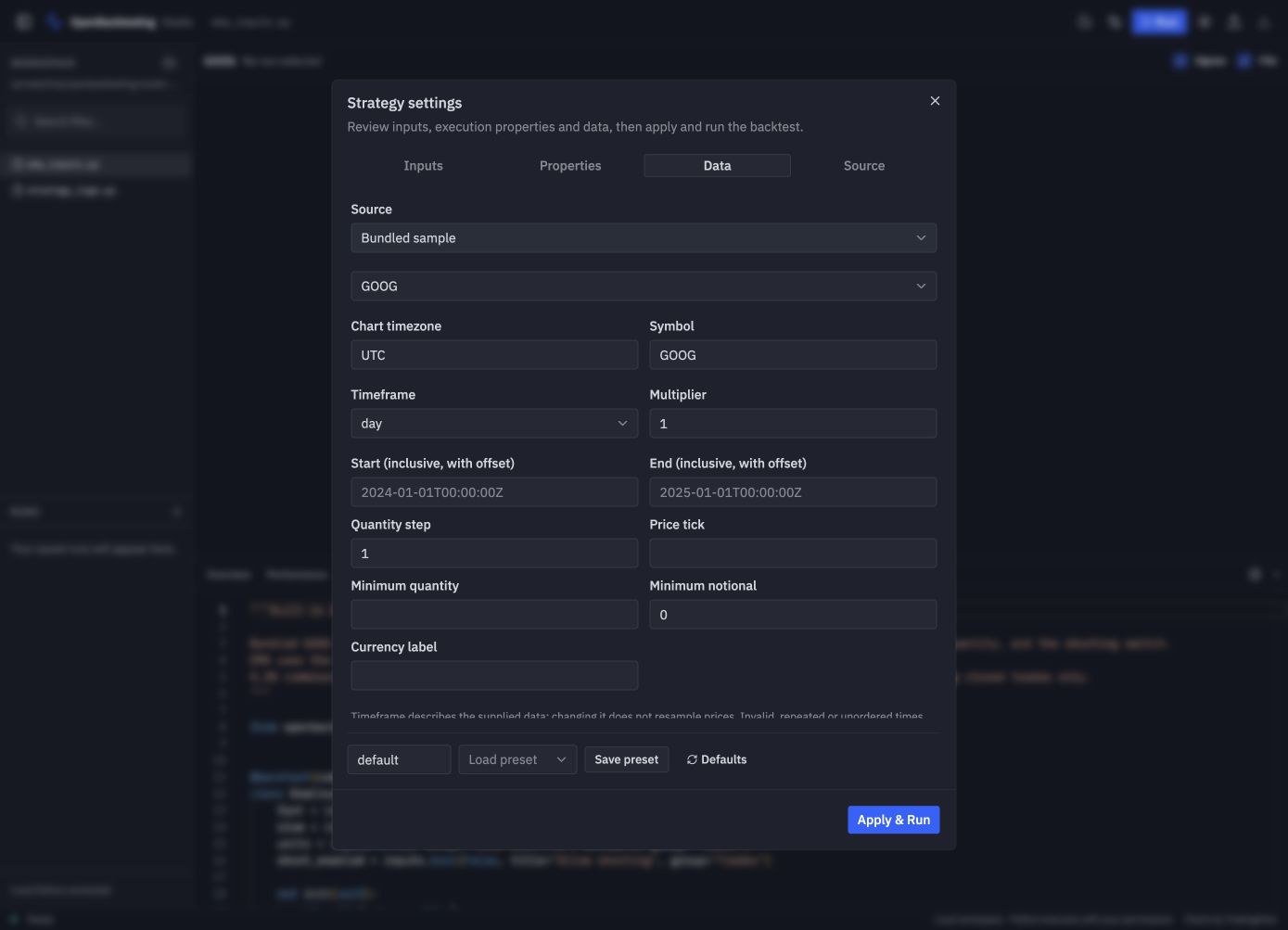

4. In Data, keep Bundled sample → GOOG, UTC, and day × 1. No market-data download is needed.
5. Click Apply & Run. Wait for the run to become succeeded and the report to appear.

For your own data, select Workspace CSV and specify its path, time column, OHLCV columns, time encoding, and source timezone for naive timestamps. Local Python loader accepts a function that returns a DataFrame. See market data for DataFrame and timestamp requirements. Changing the timeframe label does not resample prices.

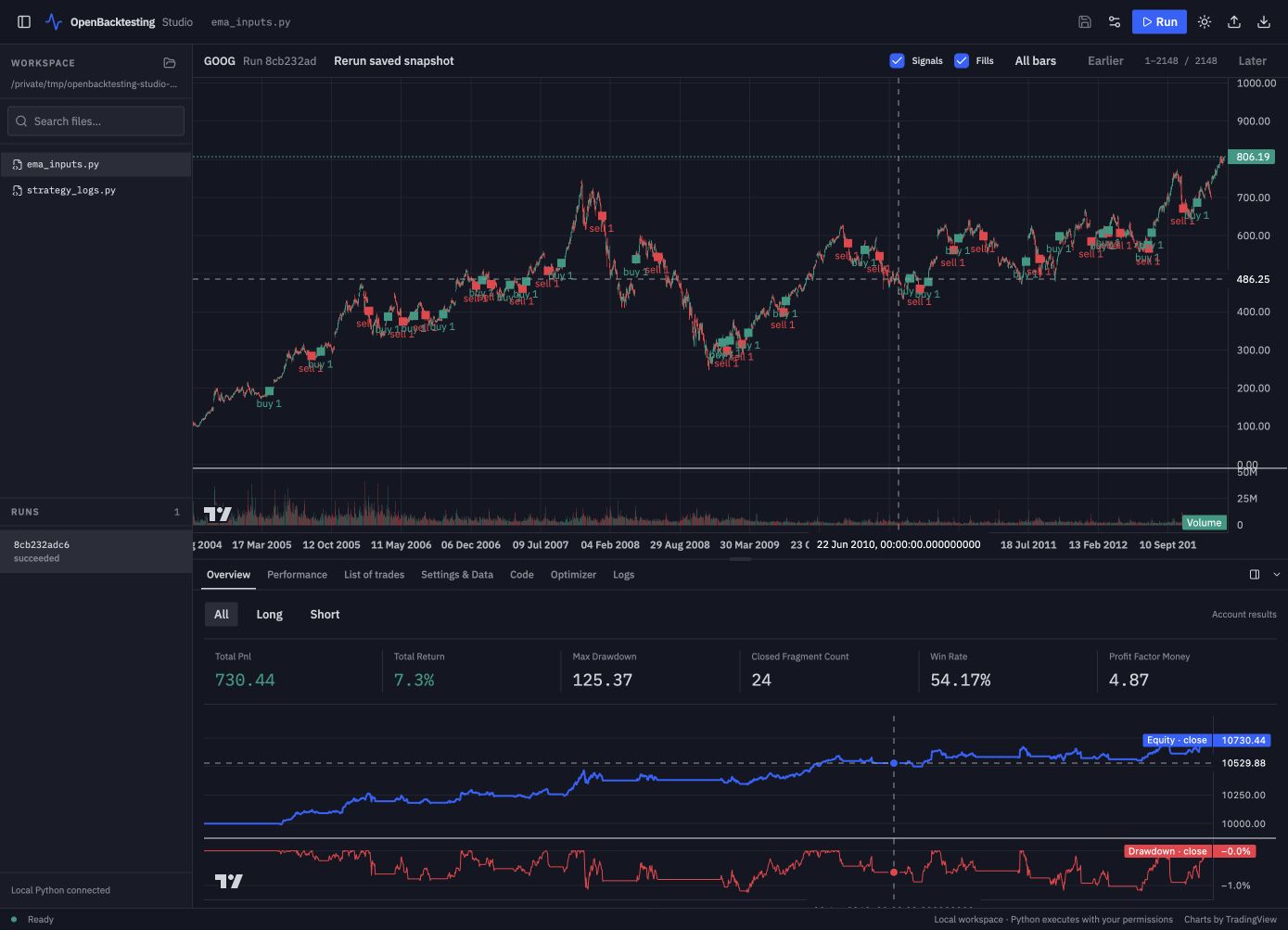

4. Read charts and results

The chart shows the selected run's saved data. Signals and Fills control separate layers; All bars, Earlier, and Later change the displayed window. Indicator declarations determine which series appear on the main chart or secondary panes. Click a trade's location action to inspect its original execution.

Tab	What to inspect
Overview	Headline metrics and the equity curve
Performance	Detailed metrics and All / Long / Short contributions
List of trades	Trades and execution tables, record details, and chart locations
Settings & Data	The configuration and data identity saved for this run
Code	The selected workspace file or an explicitly opened source snapshot
Optimizer	Saved parameter experiments and their trial reports
Logs	Strategy messages, worker output, and errors

Use the panel icon beside the tabs to move results below the chart or to its right. Drag the divider to resize; focus it and use arrow keys for keyboard resizing. Placement and size are remembered. Collapsing the panel does not discard its state.

Select a completed entry under Runs to reopen its saved report and chart without executing the strategy again. Rerun saved snapshot explicitly creates a new run from captured source and data when those resources are available. Out of date means the displayed run differs from the current source or configuration; it does not invalidate the saved result.

5. Edit code and change parameters

Open Code, edit, and use Save strategy or Ctrl/Cmd+S while the editor is focused. Saving writes to the actual local Python file. If the file changed elsewhere, resolve the conflict before saving; failed saves retain your draft. An opened historical source snapshot is read-only.

Open Strategy settings to change Inputs without editing the Python declarations. Apply to next run updates the next configuration; it does not start a backtest. Click Run when ready. If code has unsaved changes, Save & Run saves before preparing the new run. A new or changed input schema may require review again.

Save preset stores reusable inputs and properties as JSON; Save profile stores a data configuration. Neither rewrites the strategy's default values. Every submitted run keeps an immutable configuration, so later edits do not change its result.

6. Inspect logs

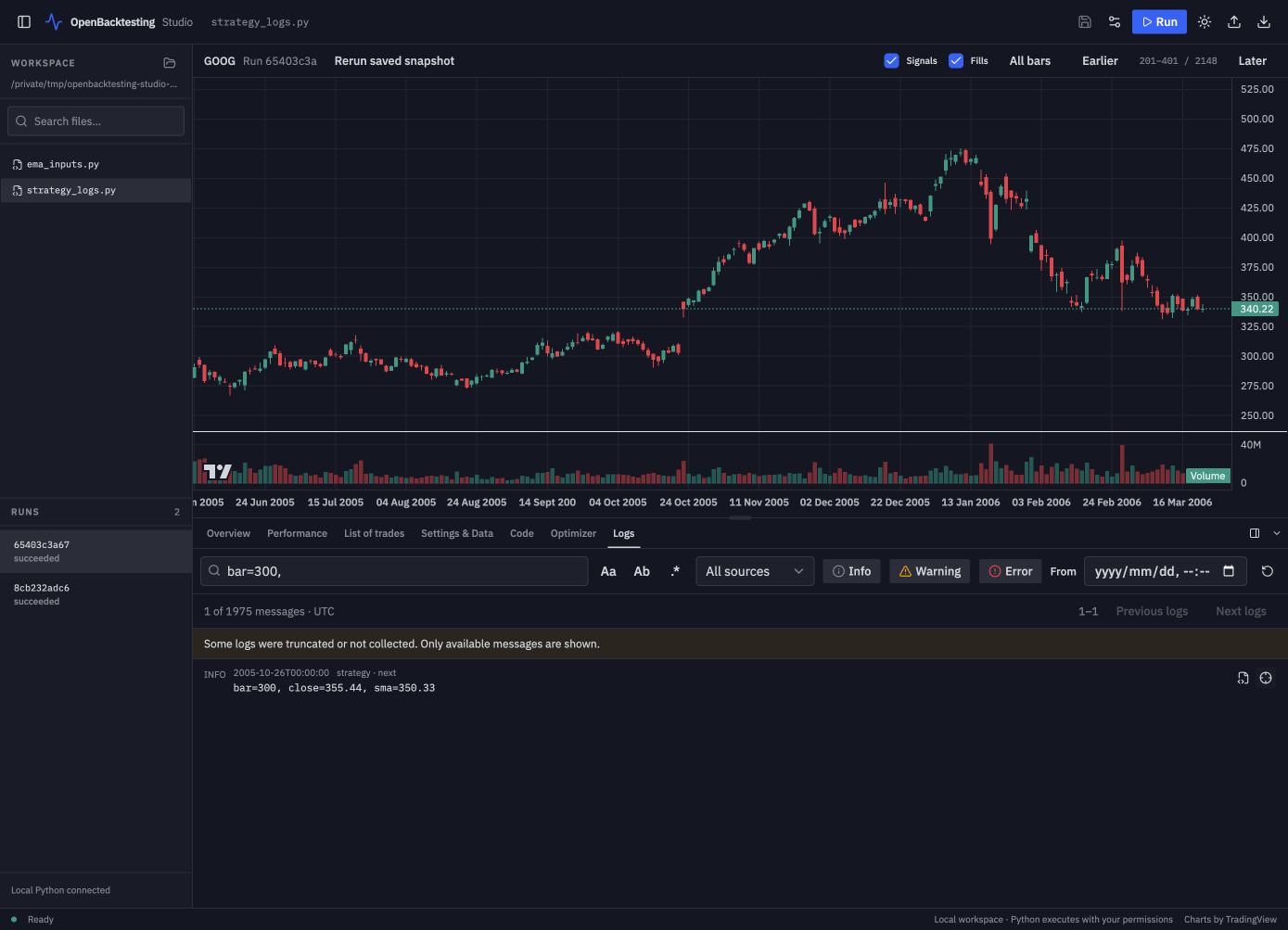

Run the bundled strategy_logs.py example to explore Logs. Messages show timestamps, levels, and sources. Filter by Info / Warning / Error, source, or starting date; search supports case sensitivity, whole words, and regular expressions. A truncation notice means only the available messages are shown.

The source icon opens the captured code at its recorded line. The bar icon locates the corresponding original bar without running Python. These actions depend on the snapshot resources being available. Logs are saved backtest output, not a live log stream.

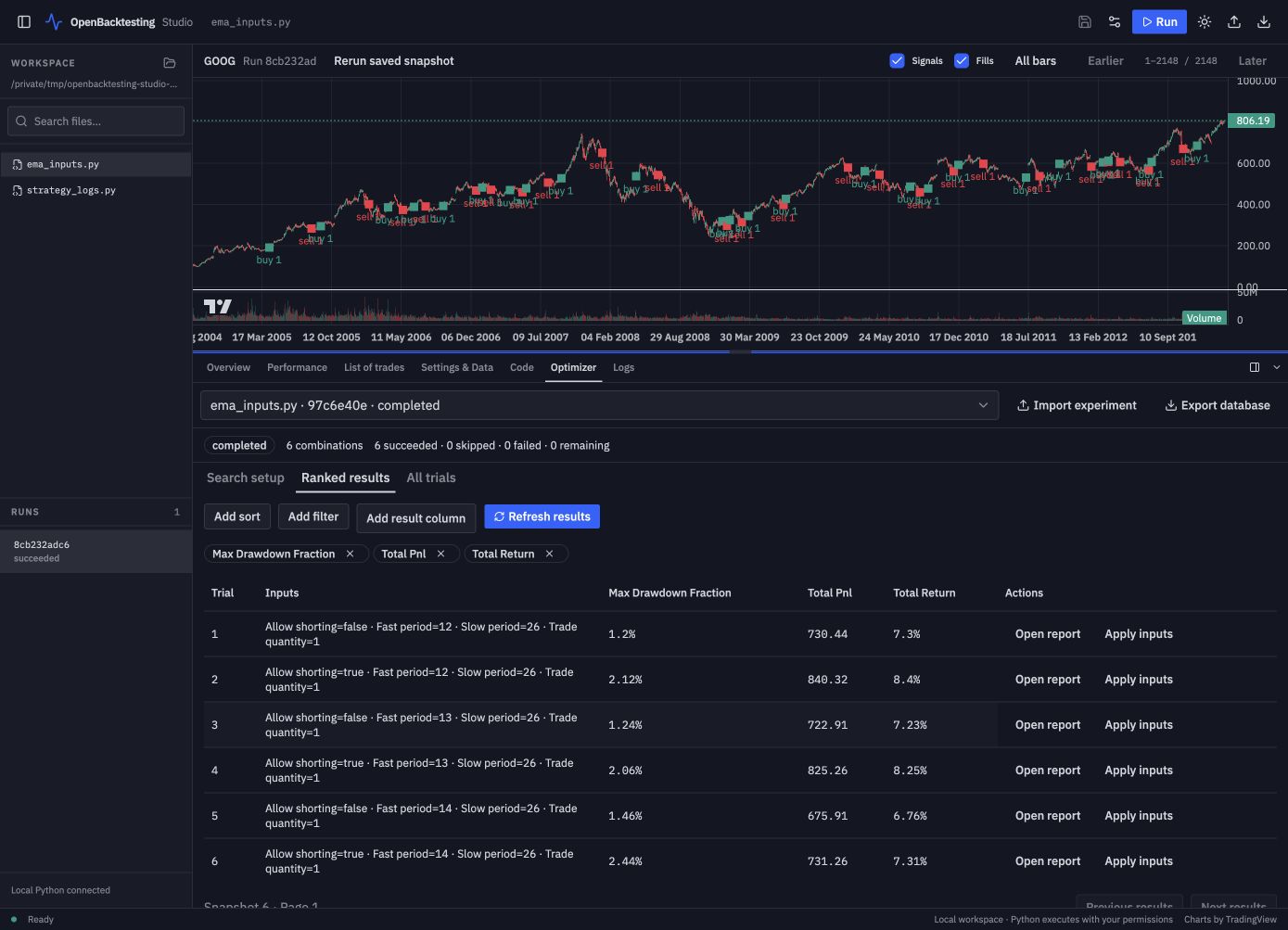

7. Compare parameters with Optimizer

Return to ema_inputs.py and review its settings, then open Optimizer, immediately after Code:

1. In Search setup, enable Fast period. Keep its first value at 12, then use Add Fast period value twice to enter 13 and 14 in separate fields; keep Slow period at 26. Enable Allow shorting and use Add Allow shorting value to include both false and true. This creates six combinations.
2. Click Preview search to capture source, settings, and normalized data and inspect the planned combinations. Preview can import strategy code and load data, but does not execute init() or next().
3. Click Start experiment. You can cancel and resume using the frozen inputs; regular runs and optimization share one execution slot.
4. In Ranked results, choose columns, add sorts or filters, and click Refresh results. All trials includes skipped and failed combinations.
5. Use Open report for the saved Portfolio, or Apply inputs to review a trial's parameters for the next regular run.

Optimization currently saves Portfolio reports, not per-trial plots or logs. Apply a trial's inputs and run a regular backtest when you want its chart. Export database creates a consistent SQLite backup; Import experiment opens it for querying and reports, without executing or resuming imported code. See parameter experiments for core search and query semantics.

Save, share, and reopen

Studio stores history, snapshots, profiles, and experiments under .openbacktesting/studio/ inside the chosen directory. Keep that directory to retain your history; consider ignoring it in your strategy repository.

Export result creates an .obstudio archive. Reports, chart data, and provenance are included by default; source, normalized raw data, and logs are opt-in. Review the contents before sharing. Use Import result in Studio, or launch a read-only viewer:

openbacktesting-studio view /path/to/result.obstudio --no-open
openbacktesting-studio view /path/to/portfolio.json --no-open

A standalone Portfolio JSON provides reports; it does not imply that chart data is present. Imported results do not execute embedded Python.

Studio runs trusted local Python with your user permissions; it is not a sandbox.

Troubleshooting

Symptom	What to check
openbacktesting-studio is not found	Activate the environment where Studio is installed; python -m openbacktesting_studio.cli --help checks that interpreter directly.
Installation rejects static assets	Run npm --prefix studio/web run build from the checkout root, then retry the Python install.
No compatible strategy is discovered	The saved module must expose one @backtest strategy; install its imports into the selected interpreter.
A run fails or data is rejected	Open Logs and inspect the source location; check column mappings, time encoding, timezone, and ordered unique bars.
Directory switching is disabled	Save unsaved code and finish or cancel the active run or optimization.
An old result has no chart or source	Those resources were not included. Read the report, or explicitly run locally trusted source to create a new complete result.
The remembered directory disappears	Use the same browser profile and origin, including the port, and check that the directory still exists.
